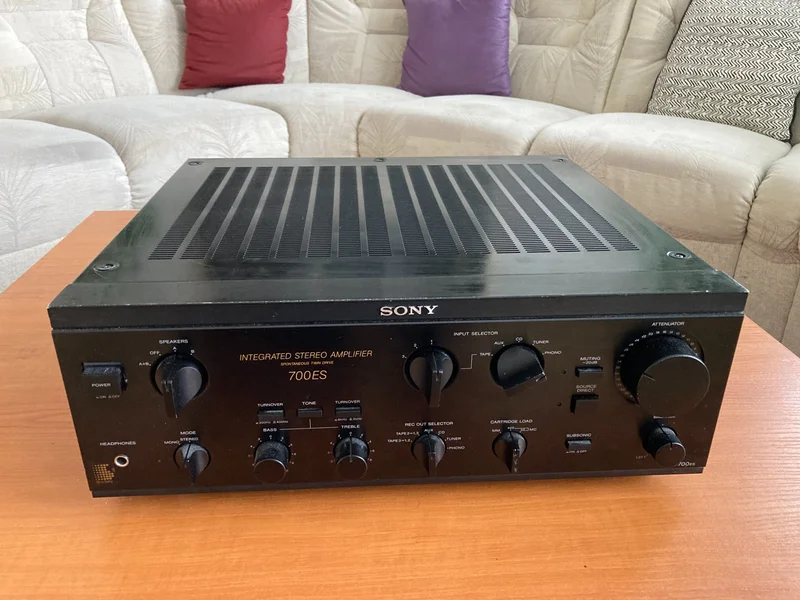

Sony TA F-700ES (1987-89)

Model: TA-F 700 ES

Type: Integrated amplifier

Years of manufacture: 1987 - 1989

Made in: Japan

Color: Black

Remote control: No

Power consumption: 270 W

Dimensions: 430 x 160 x 436 mm (WxHxD)

Weight: 18,3 kg

Original price approx.: 1'300 DM

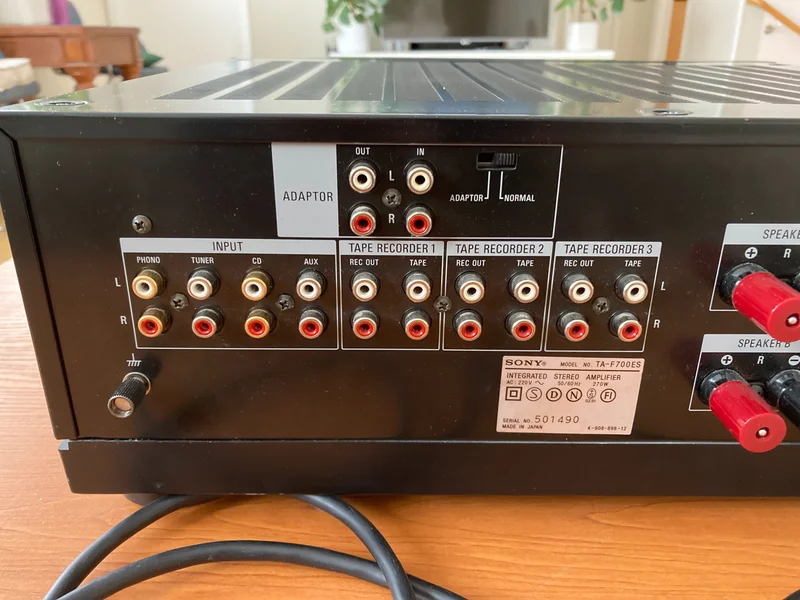

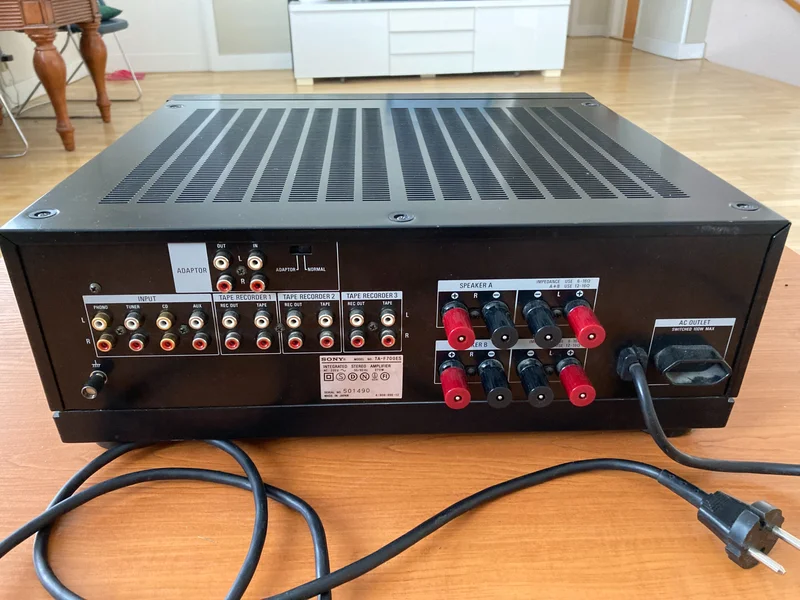

Connections

8 inputs: Tuner, CD, Direct In, Tape 1,2,3, Adapter, Aux (150mV, 20 KOhm), 1x Phono MM/MM/MC (2,5mV, 50KOhm / 3 Ohm, 0,17mV, 100Ohm / 40 Ohm, 0,17mV, 1KOhm)

4 outputs: Tape 1,2,3, Adapter (150mV, 1 kOhm)

Technical Data

Rated power:

2 x 110 watts at 8 ohms ( 0.004 % distortion) according to DIN.

2 x 145 Watt at 4 Ohm ( 0,008 % distortion) acc. to DIN

Attenuation factor: 100

Frequency response: 2 Hz - 200 kHz

Signal to noise ratio: 84

Tone control: yes, can be switched off

Bass: at 100Hz (crossover frequencies 200Hz, +4db -5,5dB), (crossover frequencies 400Hz, +6dB -7dB)

Treble: at 10kHz (crossover frequencies 3kHz +7dB -8dB), (crossover frequencies 6kHz, +4dB -5dB)

Subsonic: Yes, 6 dB / Octave

Loudness: no

High Filter: no

Mute: yes, -20 dB

Direct/Line-Straight: yes
