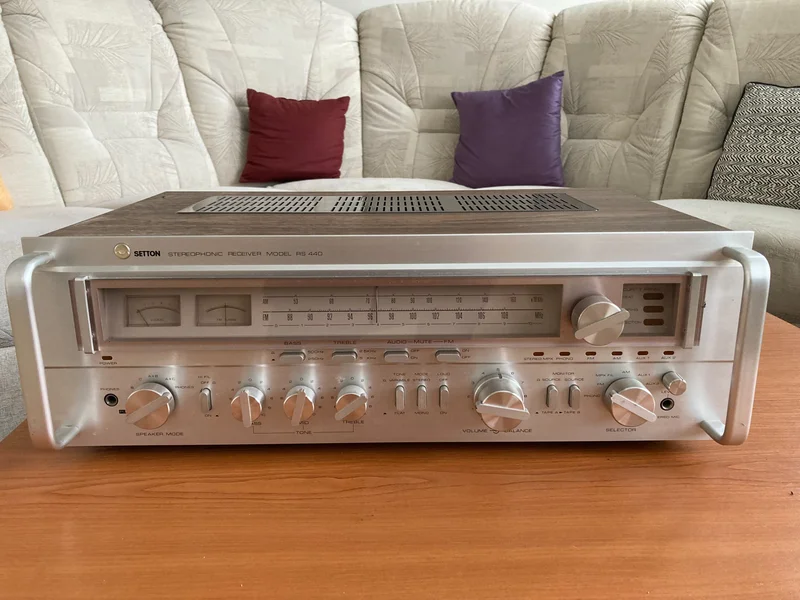

Setton RS 440 (1977-81)

Manufacturer: Setton
Model: RS-440
Type: Receiver
Years of manufacture: 1977 - 1981
Made in: Japan
Color: Front silver, housing wood foil
Power consumption: 360 W max.
Dimensions: 540 x 170 x 300 mm (WxHxD)
Weight: approx. 14 kg
Original price approx.: 1'998 DM

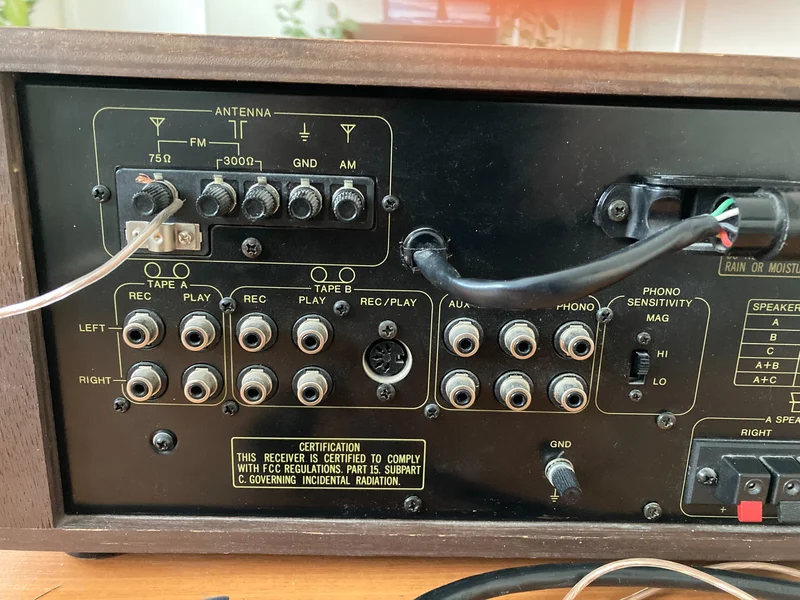

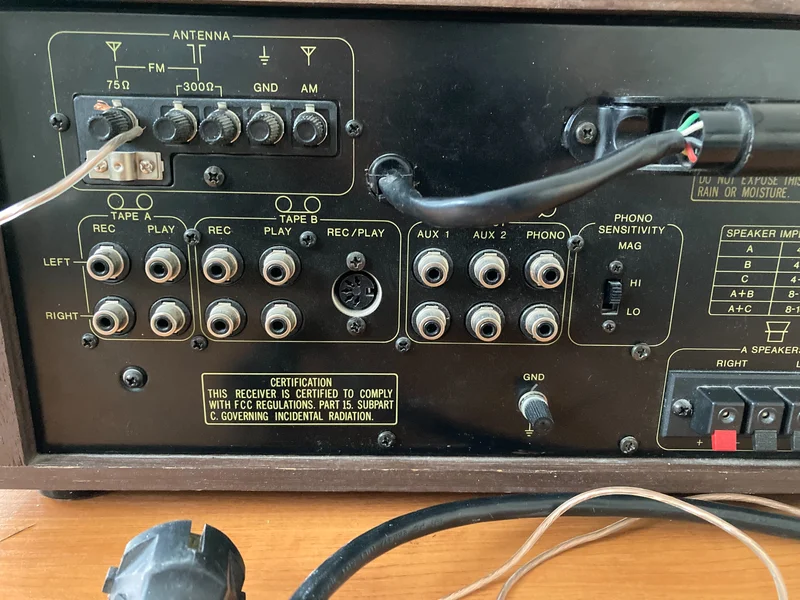

Connections

Number of inputs:
Phono (MM) switchable High: 2.5 mV, max. 150 mV, Low: 5 mV, max. 300 mV.
Microphone: 6 mV, 10 kOhm
Aux 1, 2: 150 mV

Tape Play 1, 2: 150 mV
Tape 2 DIN: 150 mV

Antenna (FM: 75, 300 Ohm, AM).
Number of outputs:
Tape Rec 1, 2: 150 mV
Tape 2 DIN: 30 mV

Headphones: 6.3mm jack plug
3 speaker pairs

Technical Data

Amplifier

Continuous power (at distortion):
8 Ohm: 2x 55 W (RMS, 20 - 20,000 Hz), 2x 60 W (1 kHz).
4 Ohm: 2x 80 W (1 kHz)
Dynamic power:
8 Ohm:
4 Ohm:
Total harmonic distortion: 0.1%, 0.05% at 1000 Hz
Damping factor: 35 at (1 kHz, 8 Ohm)
Frequency response: 20 - 20,000 Hz
Power bandwidth: 5 - 40,000 Hz
Signal-to-noise ratio:
Phono Low: 70 dB
Phono High: 65 dB
AUX: 90 dB
Tape: 90 dB
Stereo Channel Separation:

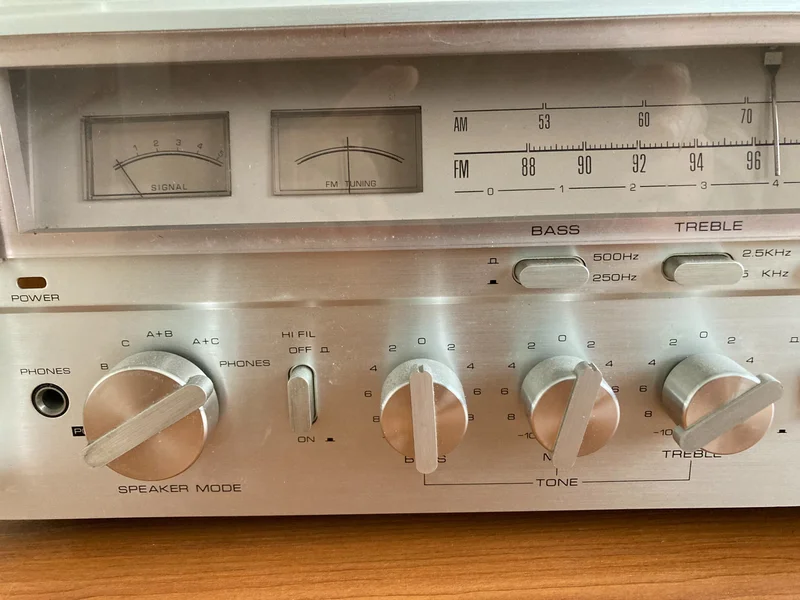

Tone control:
Bass: ± 10 dB, switchable at 62 Hz, 125 Hz
Tilt frequencies switchable: 250 Hz, 500 Hz
Mids: ± 6 dB, 1 kHz
treble: ± 10 dB, switchable at 10 kHz, 20 kHz

Toggle frequencies switchable: 2.5 kHz, 5 kHz
Loudness: + 12 dB at 50 Hz, + 3.5 dB at 10 kHz
High Filter: - 10 dB at 10 kHz
Low Filter (Subsonic):
Audio Muting: - 20 dB

Tuner:

Reception: FM, AM
Frequencies:
FM: 88 - 108 MHz
MW: 525 - 1605 kHz
Input sensitivity:
FM: 1.8 µV
MW: 25 µV
Frequency response: 30 - 15'000 Hz
Distortion factor: Stereo 0.4 %, Mono 0.15 % at 1 kHz
Signal-to-noise ratio:
FM: 72 dB for mono, 67 dB for stereo
AM: 45 dB

Stereo channel separation: > 40 dB at 1 kHz
Selectivity:
FM: 70 dB
MW: 45 dB
Co-wave selection: 1.25 dB
Spurious wave selection: 90 dB
Image frequency attenuation:
FM: 80 dB
MW: 60 dB
IF attenuation:

FM: > 90 dB
MW: > 85 dB
AM suppression: 65 dB
FM muting
MPX filter
