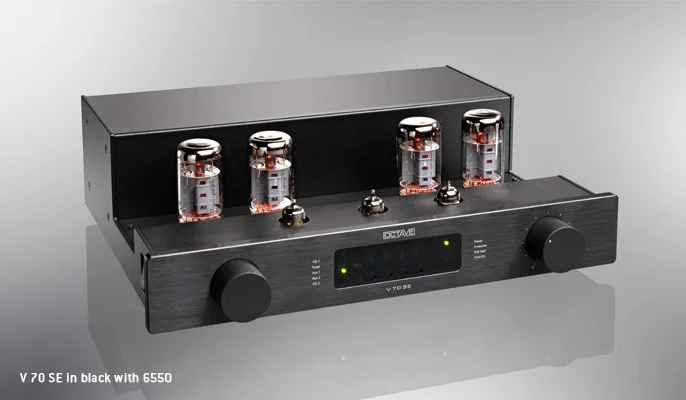

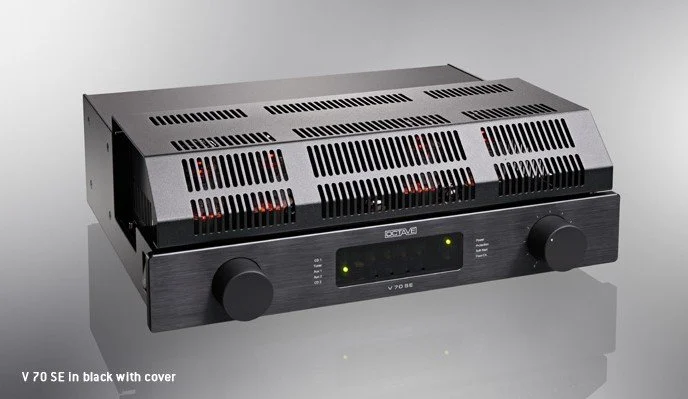

Octave V70 SE

Beskrivning

Beskrivning
Demo-ex säljes! Dags att göra plats för höstens intåg av nya produkter. Passa på att göra ett klipp på en väldigt fint och välljudande rörförstärkare. Nu till kanonpris.

Det finns även en Super Black Box som går som handen i handsken till förstärkaren. En extra kondensatorbank som toppar ut förstärkaren med mer kraft. Nypris på den = 33’000. Tillsammans med V70 SE = 17’000 kr (paketpris).

Nypris V70 SE, 74500 kr. Det sitter ett phonokort för MC-pickuper monterat, värde 8’700 kr.

Beskrivning
The V70 SE is a line level integrated amplifier delivering 2 x 70 W peak output power. Belonging to the same family of design as the V 40 SE, the V 70 SE performs with more power. His outstanding features are control and dynamics. The V 70 SE plays Rock-and-Roll like Rock-and- Roll and celebrates Classical music with delicate grace and solid expanse. Listening to music becomes an absolute pleasure.

Like the V 40 SE, the V 70 SE benefits from the experience OCTAVE gained developing his predecessors. Numerous improvements over the previous V 70 model form the new V 70 SE. Embedded in the larger, optimized chassis construction of the V 80, the V 70 SE now offers higher performance while the sensitive electronic circuits are better shielded against the magnetic stray field of the transformer and the mains. The mains transformer itself is a special low-noise type encapsulated in a magnetic closed box.

The Output Stage consists of two power Tetrodes (Type 6550 C) per each channel. Due to the BIAS Control and Monitoring System, the use of other pin-compatible output tubes is possible to match the amplifier to personal taste, or to benefit from new or improved tubes.

The V 70 SE, as all OCTAVE Amps, is based on the enhanced pentode configuration. This configuration ensures the absolute stability of the amplifier against the unstable impedance of the speaker. Impedance mismatch is without consequence, as the amplifier is stable down to a 2 Ohm load. An important contribution to this stability is the Single Impedance Output Transformer.

Tube Complement 4 x 6550

Design Aluminium - black

Specifications

Power Output 2 x 70 Watt into 4 Ohm

Frequency Response

20 Hz - 70 kHz @ 40 W - 1 / -3 dB

5 Hz - 70 kHz @ 10 W - 0 / - 2 dB

Total Harmonic Distortion < 0,1% @ 10 Watt into 4 Ohm

Signal-to-Noise Ratio > 100 dB

Input Sensitivity 120 mV

Minimum Speaker Impedance 2 Ohm

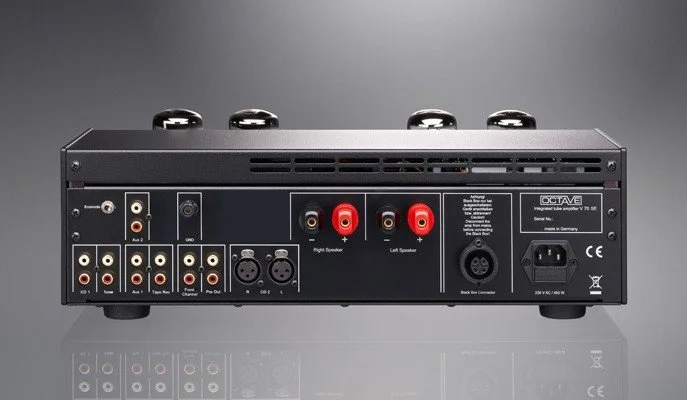

Connections Inputs: 4 x Line Level Cinch (1x optional Phono)

1 x XLR Input

Outputs:1 x Tape

Pre-Out and Main-In

Features ECO Mode, Bias Adjustment, Power Management

General Facts

Power Consumption < 25 W Ecomode, 140 Watt idle, 400 Watt @ full power

Weight ca. 23 kg

Standard Accessory Power cord, 3 mm screwdriver, IR-Remote Control, Allen key for removing the cover

Main Fuse 230/240 V mains: 4 A slow-blow type H

-------------------------------------------------------------------------------------
Hos Hifi Puls AB kan du köpa direkt via hemsidan och betala med kort, räntefri avbetalning via Svea eller på faktura.

- Eller köp via butiken i Sävedalen.

- Fri frakt inom Sverige

- Alltid 3 månaders garanti på begagnade produkter.

- For international buyers, please contact me for payment and shipping options
