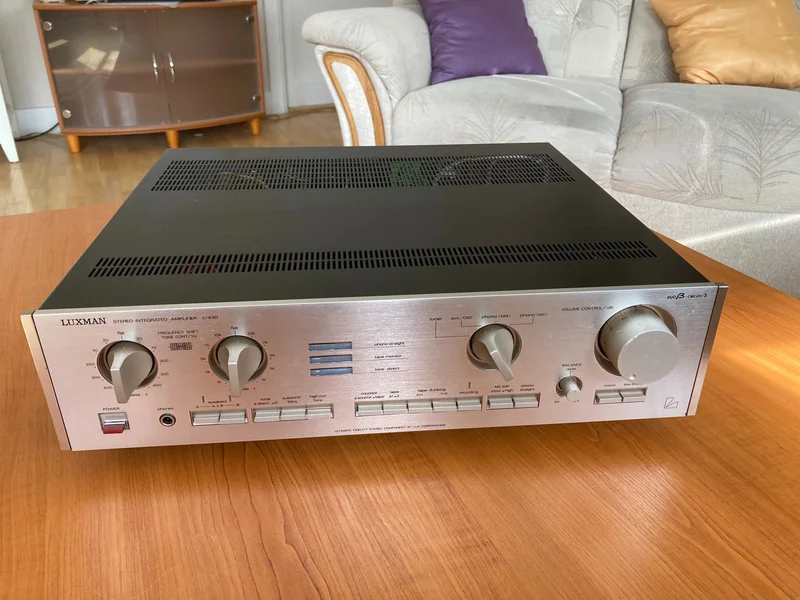

Luxman L430

Manufacturer: Luxman
Model: L-430
Type: Integrated amplifier
Years of manufacture: 1982 - 1985
Made in: Japan
Color: Champagne, matt brushed
Remote control: no
Power consumption: 180 W
Dimensions: 453 x 135 x 425 mm (WxHxD)
Weight: 13,5 kg
Original price approx.: 1'348 DM

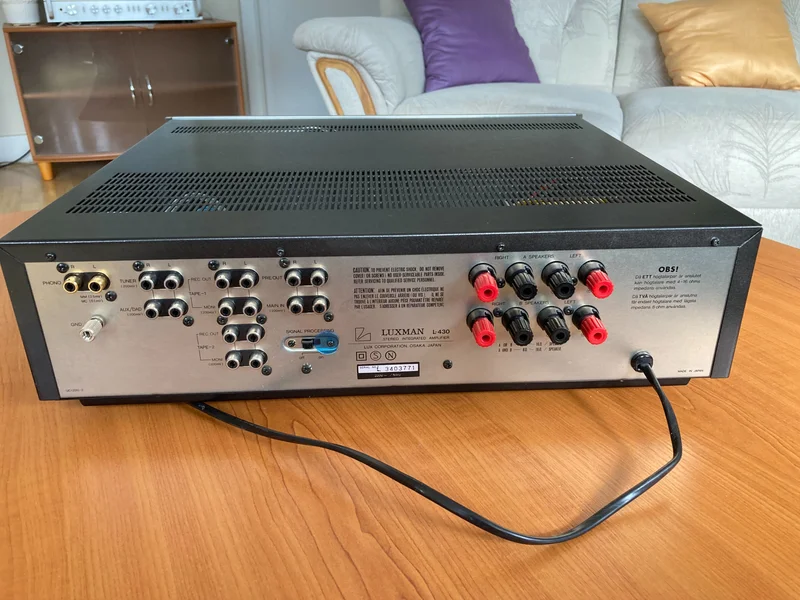

Connections

Number of inputs:
Phono-MM: 2.5 mV, 50k Ohm
Phono-MC: 100µV, switchable: 100 Ohm, 300 Ohm
Tuner: 200mV, 40k Ohm
AUX: 200mV, 40k Ohm

DAD: 200mV, 40k Ohm
Tape Play: 200mV, 40k Ohm
Main in: 200mV, 50k ohms
Number of outputs:
Tape Rec:
Pre-out: 200mV
Headphones
2 pairs of loudspeakers

Technical Data

Continuous power (at distortion factor 0.015 %)
8 Ohm: 2 x 105 Watt into 8 Ohm
4 Ohm:
Dynamic power
8 Ohm:
4 Ohm: 2 x 180 Watt (DIN)
Total harmonic distortion: <0,015 % (bei Volllast)
Dämpfungsfaktor: >100
Frequency response:
Phono (MM/MC): 20 Hz - 20,000 Hz (±0.3 dB).
Tuner, Aux, Main in: 10 Hz - 100,000 Hz (-1 dB).
Noise voltage range:
Phono-MM: 87 dB at 5mV
Phono-MC: 69 dB at 250µV
Tuner: 110 dB AUX: 110 dB

Main In: 110dB
Stereo channel separation: > 50 dB

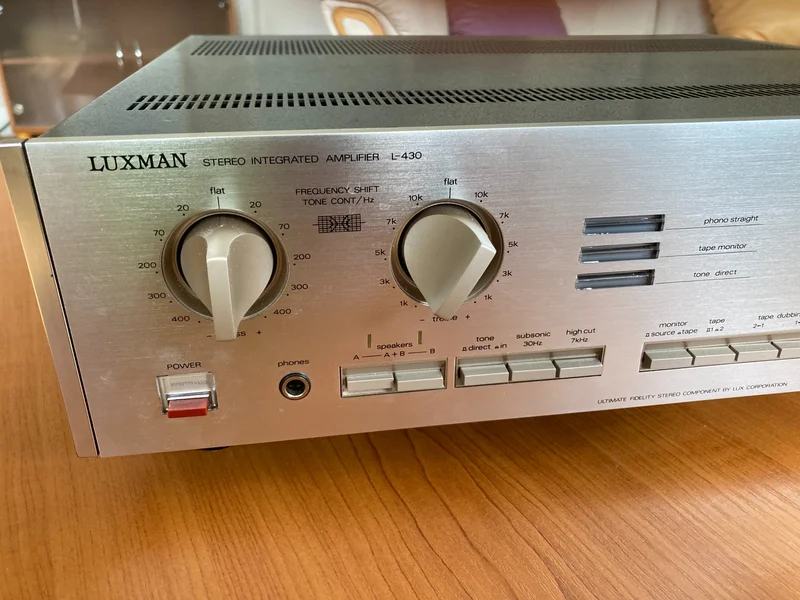

Tone control:
Bass: ± 8 dB
Treble: ± 8 dB

Loudness: 100 Hz +8 dB (Volume -30 dB)
Noise filter: > 7 kHz, - 6 dB /octave
Rumble filter (Subsonic): < 30 Hz, - 6 dB /octave

Special Features

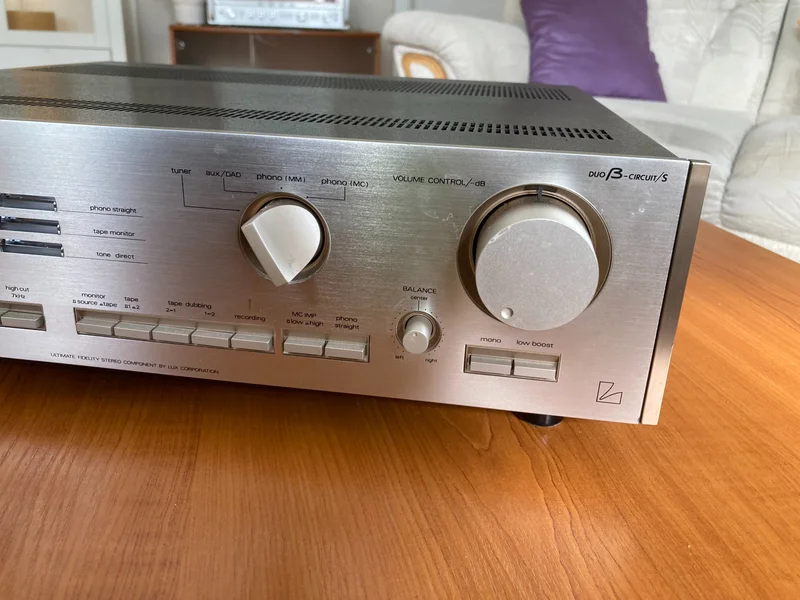

Illuminated volume control
Switchable tone control
Phono direct circuit
