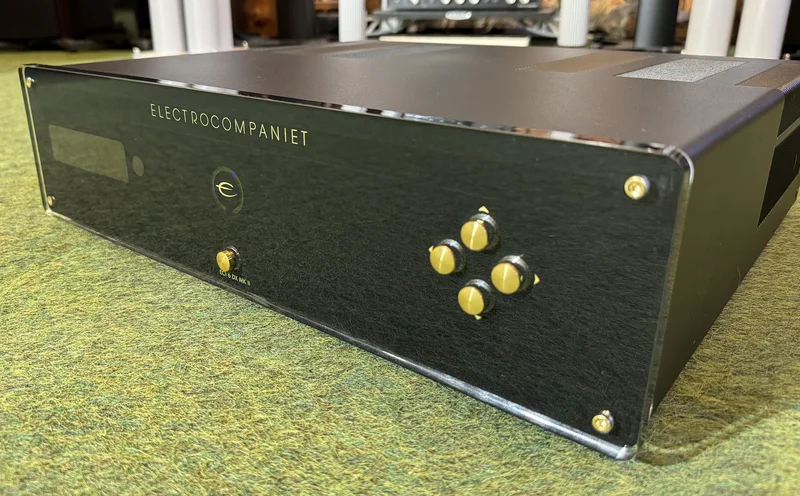

Electrocompaniet ECI 6 DX MkII

Digital section

D/A converter: 24 bit/192 kHz
Sample rate converter: 24bit / 192kHz
Inputs: SPDIF, 2x Toslink, 1x USB
USB: asynchronous up to 24bit/ 192kHz supported
SPDIF: 24bit/ 192kHz
Toslink: 24bit/ 96kHz

Streamer section

Advanced 802.11 AC WiFi with MIMO
1x Gigabit Ethernet (1000Mbps)
1x USB for external storage
iOS, Android and web app

Streaming services

AirPlay ®
AirPlay 2 ®*
Spotify ® Connect
Qobuz ®
TIDAL ®
TIDAL ® Connect
Roon Ready
DLNA
Internet Radio
Bluetooth streaming from any Bluetooth enabled device

Supported formats

All popular formats including: WAV/WAVE, MP3, AAC+, Vorbis, ALAC, FLAC, APE, WMA, up to 192kHZ/24bit, DSD, up to DSD 128 (5.6 MHz)

Preamplifier section

Input impedance (Balanced input): 47Kohm
Maximum input level: 10 Volt RMS
Noise floor (1Vrms, 20 - 20 kHz, balanced): -135 dB
THD + N (1Vrms, 20 - 20 kHz, balanced): <0.004%
Gain (Balanced): 0 dB

Amplifier section

Output Impedance: < 0,02 Ohm
Frequency response: 1 – 150 kHz
Channel separation: > 120 dB
THD ( 20 - 20 kHz): < 0.004%
Maximum peak current: >100A
Damping factor 8 ohm load: >350
I Input sensitivity 120W output: 1.3Vrms
Input sensitivity HT 120W output: 1Vrms
Gain HT Input: x36 (31 dB)

Rated output power

8 ohms: 2 x 125 W
4 ohms: 2 x 200 W
2 ohms: 2 x 370 W
Power consumption: 110 W
Standby: 1W (no load or signal)

Dimensions

Width: 470 mm / 18.3 inches
Depth ( with a speaker terminals): 430 mm / 16.9 inches
Height: 128 mm / 5 inches
Weight: 20,5 Kg / 45 lbs.
