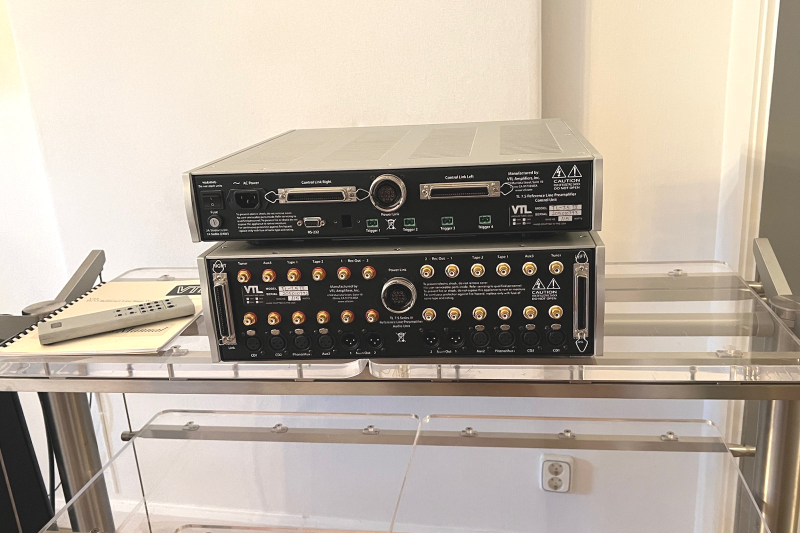

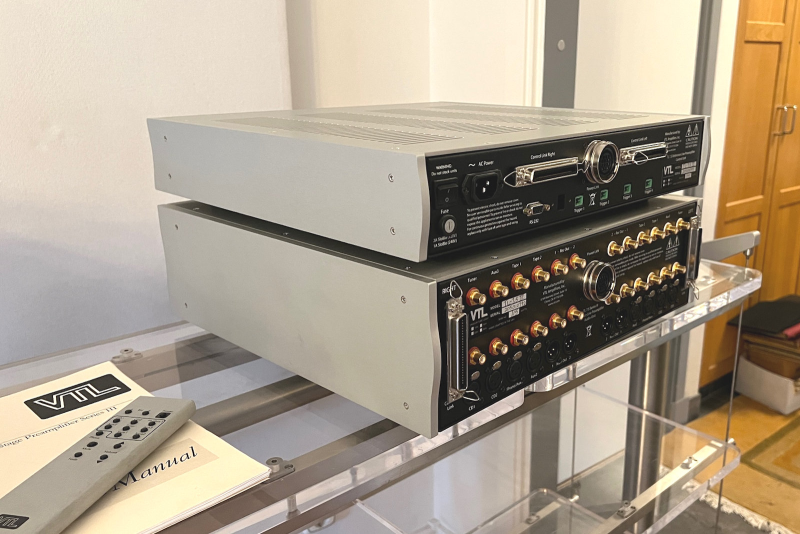

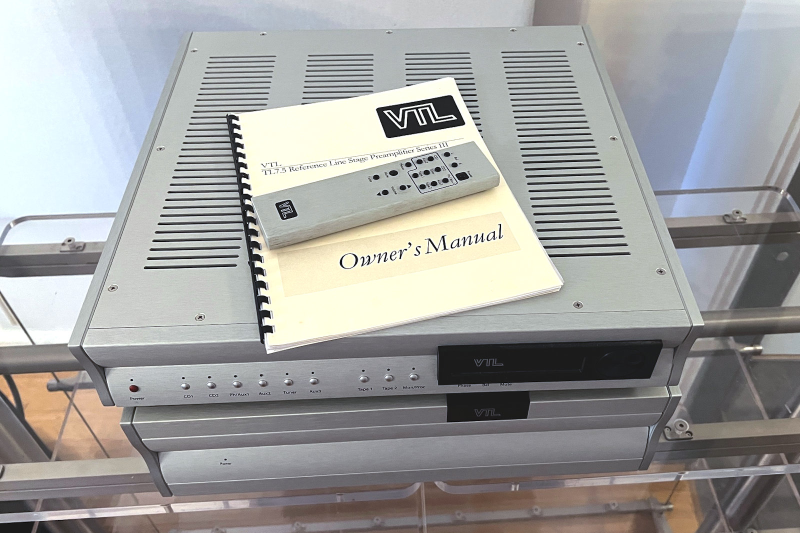

VTL TL-7.5 Series III Reference - Line Preamplifier - Beg

Rörförsteg i absolut referenklass. VTLs aktuella toppmodell. I toppskick med lådor.

Skickas fraktfritt inom Sverige! (480.000Sek)
---------------------------------

Vacuum Tube Complement 2 x 12AU7
Inputs 4 pairs balanced/XLR or RCA single-ended, 4 pairs single-ended/RCA
Outputs 2 pair balanced out, 2 pairs single-ended RCA out, 2 pairs single-ended RCA buffered Tape Out
Remote control functions Power, Source Select, Volume up/down, Mute, Fade, Balance Control, Phase Reverse
Gain Balanced in and Balanced out: 19.2 dB, Single-ended in and Balanced out: 19.2 dB
Balanced in and Single-ended out: 13.2 dB, Single-ended in and Single-ended out: 13.2 dB
Output impedance 25Ω, Max 150Ω @ 10Hz
Input impedance 50kΩ, 20kΩ min
Frequency Response +0 -1 dB 1Hz – 100kHz (20Hz – 100kHz +0 –1dB into 600Ω with 900pF 20’ interconnect cable)
Maximum Output Voltage <1% THD 30V into 10kΩ or above (10Hz – 200kHz +/-1dB)
10V into 600Ω
Channel separation >100dB @ 1kHz (>80dB @ 20kHz)
Power consuption 150W
Dimensions W x D x H Control chassis – 17.5 x 17.5 x 4 inches (44.5 x 44.5 x 10.2 cm)
Audio chassis – 17.5 x 17.5 x 6 inches (44.5 x 44.5 x 15.3 cm)
Weight 90 lbs (40.82 Kg) Fully packed in two boxes
Unpacked weight: Audio Unit – 38lbs (17.24Kg), Control Unit – 32lbs (14.50Kg)
