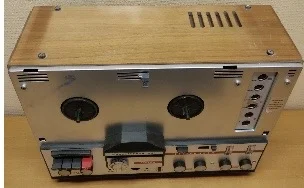

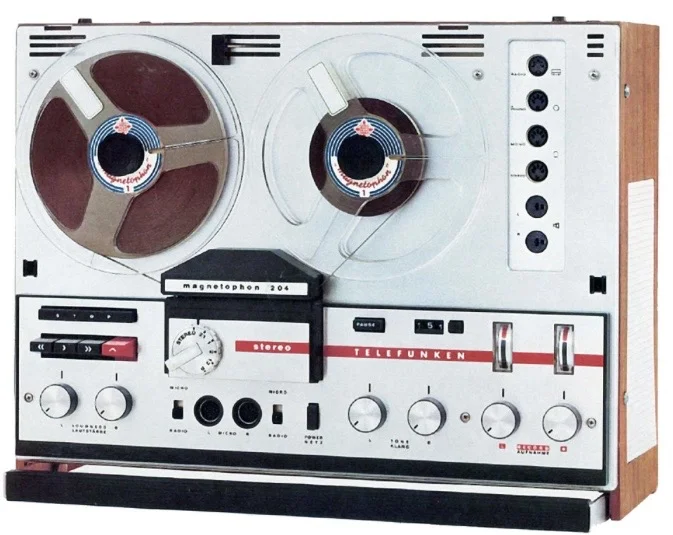

TELEFUNKEN RULLBANDARE 204

Manufacturer: Telefunken
Model: Magnetophone 204 TS 4 HIFI
Years of manufacture: 1966 - 1970
Type: Reel-to-reel tape
Made in: Germany
Color: Grey/Silver
Remote control: no
Power consumption: 60 W
Dimensions (WxHxD): 500 x 195 x 350 mm
Weight: 13 kg
Original price approx.: 778 DM

Connections

Number of outputs: 4
Radio 2x1,5V at 8,2kOhm

Headphone Mono 1,5V at 15kOhm
Headphone Stereo 2x1,5V at 15kOhm
Loudspeaker 4Ohm
Number of inputs: 3
Microphone 2x0,15mV at approx. 5kOhm
Radio 2x0,15mV at approx. 5kOhm
Phono (tape) 2x150mV at approx. 2,2MOhm

Technical Data

Max. Coil diameter: 18cm
Drive: Capstan belt drive, 1 synchronous motor
Heads: 2
Tracks: 4
Tape speeds: 4.75cm/s, 9.5cm/s, 19cm/s
Slip:
Synchronous fluctuations:
Pitch fluctuations: 0.4% at 4.75cm/s, 0.25% at 9.5cm/s, 0.15% at 19cm/s.
Overall frequency response:40-8000Hz, 40-15000Hz, 40-18000Hz (4.75, 9.5, 19cm/s)
Signal to noise ratio: 48, 50dB (9.5, 19cm/s)
Signal-to-noise ratio:
Distortion: 5%
Equalization:
Crosstalk attenuation:
Cancellation attenuation:
Premagnetization and cancellation frequency: 85kHz

Special Features

Multiple function switch
Three tape speeds
Two microphone inputs
End switch-off via tape foil
Overdubbing track 1 to 2 or vice versa
Built-in power amplifier with 2x6 watts and loudspeaker
Pris efter service 1.995:- eller bud

Är på service
Lägg ett bud (med telefon nr)
