RME ADI-2 FS DAC

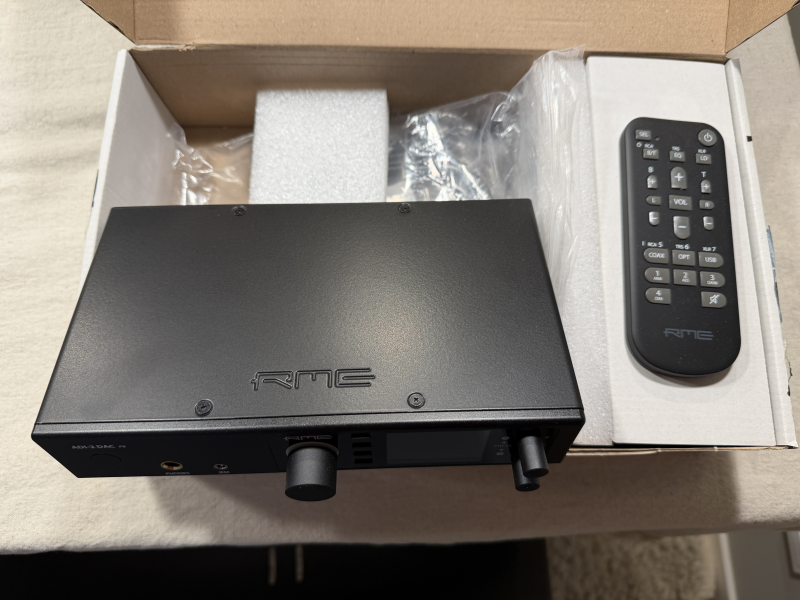

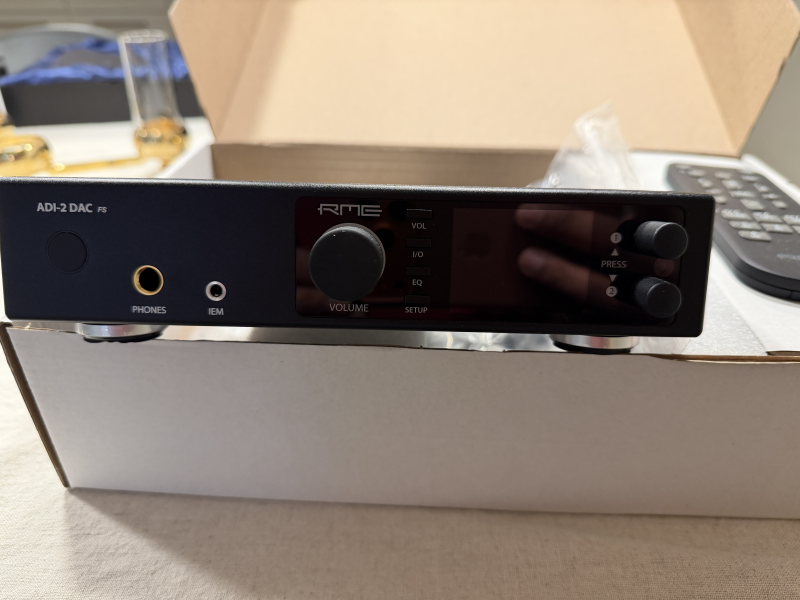

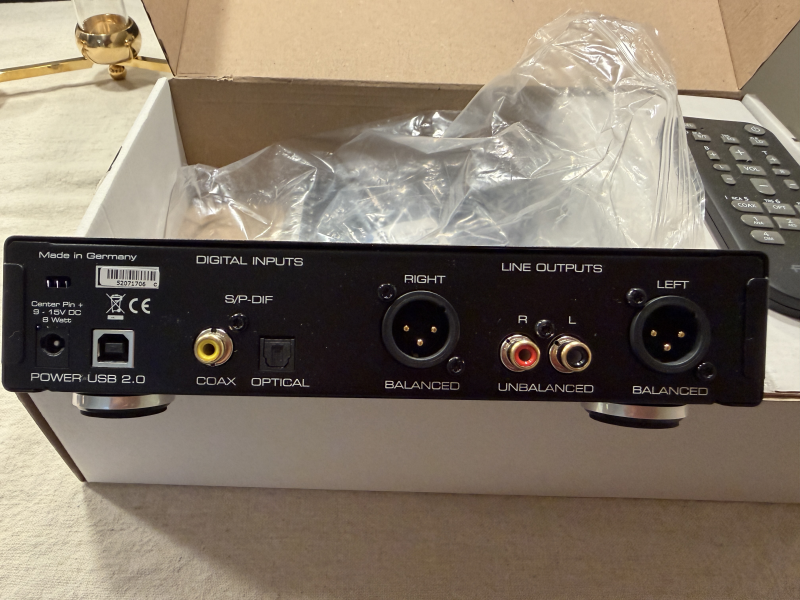

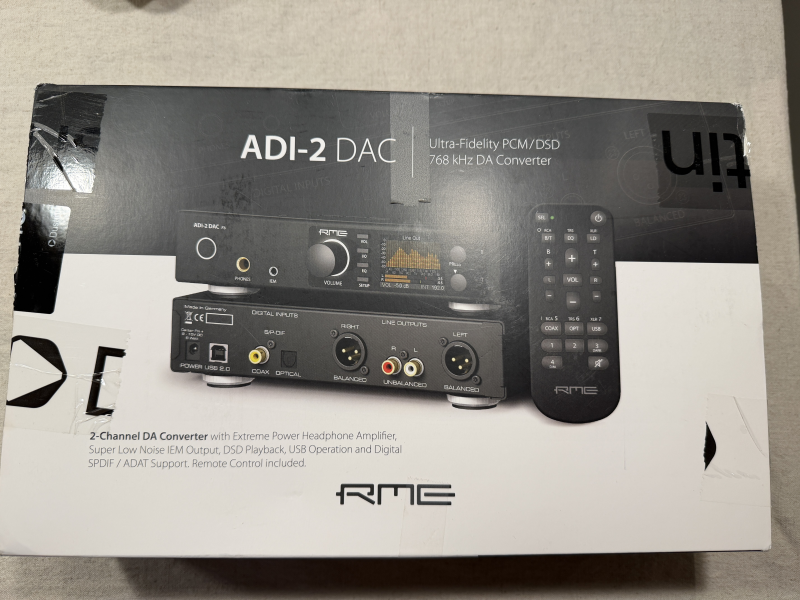

Practically New RME ADI-2 FS DAC with box, , power supply, remote, manual and a USB cable

New price : +- 13 000 kr

https://emusic.se/produkt/rme-dac-and-headphone-amp-768khz_0553077602/

Digital Inputs General

Lock Range: 28 kHz – 200 kHz Jitter suppression: > 50 dB (2.4 kHz) Jitter when synced to input signal: 120 dB Output impedance: 200 Ohm RCA

As output XLR, but:

Output: 6.3 mm TS jack, unbalanced Output level 6 dB lower than XLR (-5 dBu to +13 dBu @ 0 dBFS) Signal-to-noise ratio (SNR) @ +13 dBu: 120 dB RMS unweighted, 123 dBA Signal-to-noise ratio (SNR) @ +1/+7 dBu: 116/119 dB RMS unw., 119/122 dBA Signal-to-noise ratio (SNR) @ -5 dBu: 112 dB RMS unweighted, 114 dBA Output impedance: 100 Ohm Phones

As RCA, but:

Output: 6.3 mm TRS jack, unbalanced, stereo Output impedance: 0.1 Ohm Signal-to-noise ratio (SNR) @ +22 dBu: 120 dB RMS unweighted, 123 dBA Signal-to-noise ratio (SNR) @ +7 dBu: 118 dB RMS unweighted, 121 dBA Output level at 0 dBFS, High Power, load 100 Ohm or up: +22 dBu (10 V) Output level at 0 dBFS, Low Power, load 8 Ohm or up: +7 dBu (1.73 V) THD @ +18 dBu, 32 ohm load, 1.2 watts: -120 dB, 0.0001 % THD+N @ + 18 dBu, 32 Ohm Load: -114 dB, 0.0002 % THD @ +14 dBu, 16 Ohm load, 0.94 Watt: -110 dB, 0.0003 % Max power @ 0.001% THD: 1.5 W per channel IEM

As Phones, but:

Output level at 0 dBFS: -3 dBu, 0.55 V Signal-to-noise ratio (SNR) @ -3 dBu: 118 dB RMS unweighted, 121 dBA Max power, 8 Ohm, 0.001% THD: 40 mW per channel Digital Clocks: Internal, SPDIF In Jitter suppression of external clocks: > 50 dB (2.4 kHz) Effective clock jitter influence on DA conversion: near zero PLL ensures zero dropout, even at more than 100 ns jitter Additional Digital Bitclock PLL for trouble-free varispeed ADAT operation Supported sample rates for external clocks: 28 kHz up to 200 kHz Internally supported sample rates: 44.1 kHz up to 768 kHz

https://rme-audio.de/adi-2-dac.html
