Riktigt seriöst RIAA-steg.



Hanterar självklart MM- och MC-pickuper samt har möjlighet att finjustera enligt varje pickups specifikation.



Ingår i den legendariska Nu-Vista serien namngiven efter stjärnan i apparaten: nuvistor röret.



Fint begagnat skick med några mycket enstaka bruksmärken.

En ägare sedan ny.

Kundinbyte.

Ingångar för 5 olika skivspelare samt balanserade och single ended utgångar.

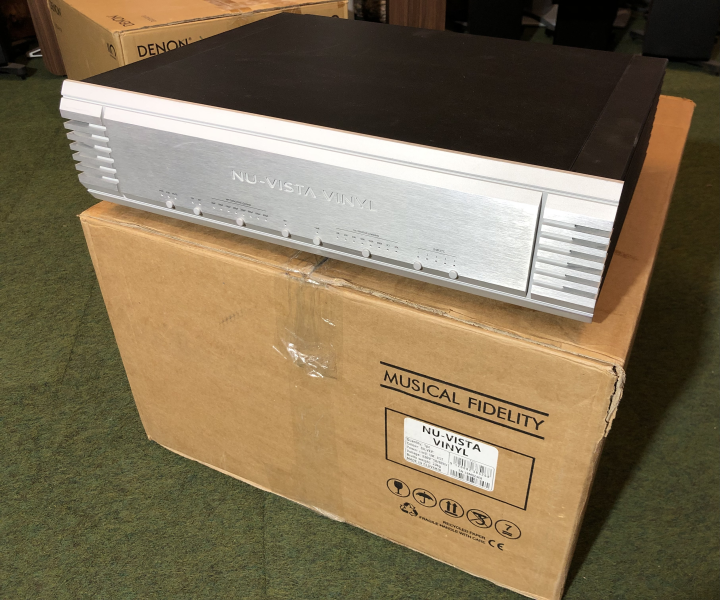

Kommer komplett i originalkartong.



--



"The sound agrees with Musical Fidelity!"
- Christian Bayer - Image-Hifi 05/18



"A strong recommendation!"
- Helmut Rohrwild - HiFi & Records 04/18



"It fascinates each time a record is played through"
- Thomas Schmidt - LP 02/19



--



The Nu-Vista Vinyl was a labour of love for MF. We love phono, we adore tubes, we are passionate about Nuvistors. We relished, revelled and basked in the pure joy of designing a product of our dreams.



One quick look at the Nu-Vista Vinyl's wonderful visuals confirms our feelings.



We set out to make a phono stage without any practical limits. Essentially, in real life, you cannot overload the input stage or find any practical limitations in the output driving capacity. Single ended or balanced.



It has five inputs, each can be set for either MM/MC and exact loading. It will remember those settings.



Sound Quality



The true point of any electronic, actually any audio component, is that you don't know it is there. You completely forget its existence.



By that criteria the Nu-Vista Vinyl is almost perfect. It has no practical audible noise, it doesn't really have distortion, you cannot overload its input or output, you can load your cartridge perfectly.



It exists to serve, serve the music. To bring the artists intent, emotions and passion to your ears and heart.



Yeah, we can talk about bass (deep, deep, deep), imaging (tactile, holographic), high frequency clarity with no sibilence....and on and on. Yeah, It does all those things.....but the big thing it does, the thing that matters ....is that it eases your soul by getting you to the heart of the music.



The Nu-Vista Vinyl has a very sophisticated power supply configuration. A total of about ten PSUs.

Separate PSUs for each channel and each stage.



Fully balanced PSUs with perfect star grounding.



All the Nuvistor PSUs are passively filtered and regulated.



For those unfamiliar with Nuvistor tubes... please let me explain. In the 1950s the shortcomings of standard tubes were becoming ever more tedious and intolerable, specially with the expectation of in-car audio. The weaknesses were many:



Large
Hot
Used gobs of power
Microphonic
Unreliable
Fragile
Inconsistent batch to batch
Relatively short life
And many, many more...



To try to solve, or at least mitigate, these problems it was decided to design a new tube, but from the beginning and using state-of-the-art 1950's technology. The result was a triumph...the Nuvistor. The best triode tube ever made.



Small
Medium temperature
Low power
Dramatically improved microphony
Very reliable
Absolutely consistent
Long life
In a word....WOWZA!!!



Unfortunately Bell Labs had been quietly working away at semi-conductors and at the moment of the Nuvistors triumph it all turned to dust. Can you imagine what it must have felt like to have been on the Nuvistor design team? The mind boggles.



So the brilliant Nuvistor tube never really went anywhere in audio......until the early 1990's when a small company named Musical Fidelity, located to the west of London in an artisan hamlet named Wembley started making amplifiers with Nuvistors. They were made in limited editions and sold out almost immediately. To this day these icons of audio individualism are still highly valued.



The mains has a special 100mHz filter stage which gives 40dB attenuation of spurious RF.
There are two mains transformers....the Nuvistors have their own dedicated unshared PSUs



The SMD PCB layout achieves outstanding inter-channel and inter-stage isolation.



Everything has been designed to allow the sound to sing....no noise, no distortion, no layout anomalies.....nothing gets in the way of the Nu-Vista Vinyl's reason for existence......the music.



Measurements



Okay, so lots of technical guff, but the proof is in the real numbers.



Extremely low distortion: less than 0.008% across the band.
It's S/N ration is really good; -96db (MM), and -86dB (MC)... reference 2V
Overload margin is better than 31dB......woof woof!!
RIAA accuracy is +/- 0.25dB. And it has an additional post RIAA filter that retains substantial accuracy up to beyond 80kHz.
Maximum output is 10V RMS, 20V Balanced.



Also the Vinyl has a +6db setting for very low output cartridges and the IEC/RIAA modification facility.

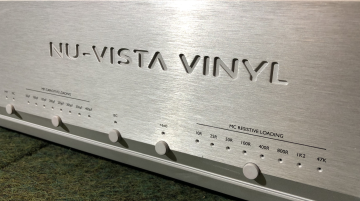

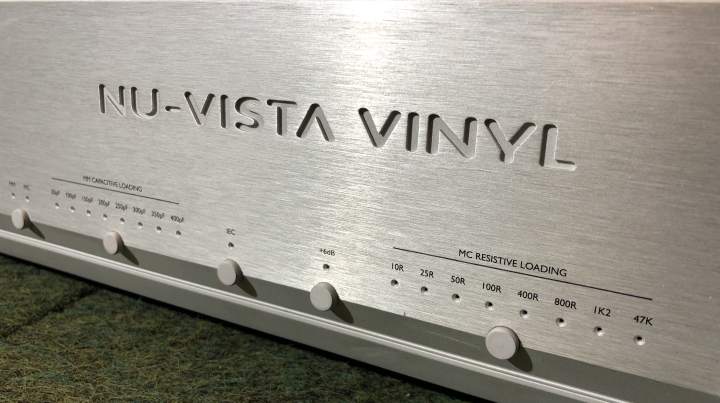

Input resistance values (8): 10R, 25R, 50R, 100R, 400R, 800R, 1k2, 47k
Capacitance values (8): 50pf, 100pf, 150pf, 200pf, 250pf, 300pf, 350pf, 400pf


MM input

Frequency response - RIAA or RIAA/IEC (selectable) ±0.2dB
Input sensitivity - 2.5mV in for 300mV out (at 1 kHz)
Input impedance - 47KO
Input capacitance - 50-400pF selectable
THD at 1 kHz - <:0.01%
Overload margin - 31dB
Signal to noise ratio - >102dB

MC input

Frequency response - RIAA or RIAA/IEC (selectable) ±0.2dB
Input sensitivity - 250µV in for 300mV out (at 1 kHz)
Input impedance - 10O to 47KO selectable
Input capacitance - 470pF fixed
THD at 1 kHz - <:0.01%
Overload margin - 31dB
Signal to noise ratio - >95dB

Outputs (RCA/XLR)

1 pair RCA (phono) - left and right 300mV nom 10V max
1 paiir XLR (balanced) - left and right 600mV nom 20V max

Power requirement

Mains voltages - 230V/115V Internally set or 100V optional. AC 50/60Hz
Consumption - 30 Watts maximum.

Weight

Unit only, unboxed - 14.5kg
In shipping carton & inc. accessories - 20.6kg

Unit dimensions

Wide - 482 mm
High, including feet - 130 mm
Deep (front to back) including terminals - 385 mm

Standard accessories

Mains lead 10 Amp IEC



-------------------------------------------------------------------------
