Förmedlinguppdrag åt kund. Kontakta mig för mer information.

Pris är för paret.

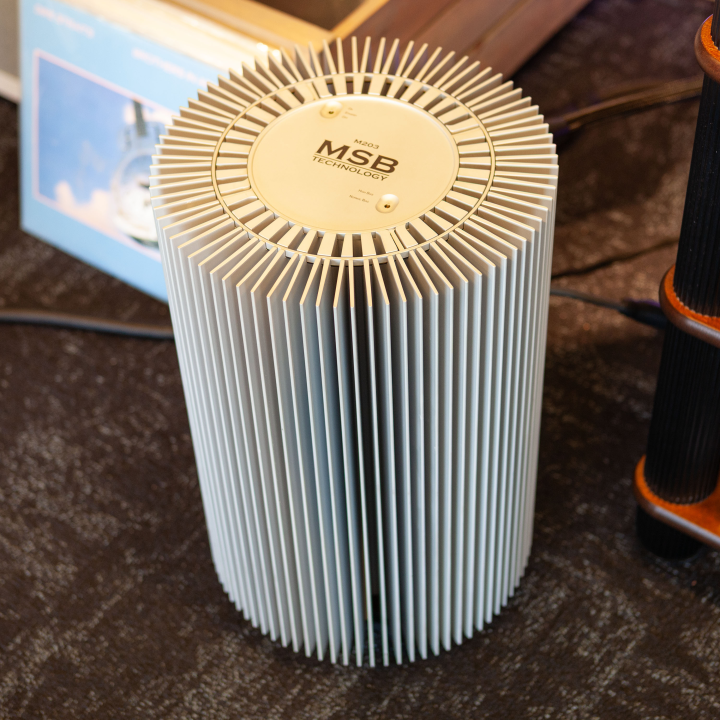

M203 mono Class A
True Balanced (XLR)
Input Impedance 36kOhm
Single-Ended (RCA)
Input Impedance 18kOhm
Input Sensitivity: 4.34 Vpp @ 200W (High Gain +28db)
8.68 Vpp @ 200W (Low Gain +22db)
Common Mode Range: +/- 20 V
Max. Linear Input Range: 10 Vpp
Max. Input Voltage: 20 Vpp
Transistors: All Bi-Polar
Feedback: 0 Negative Local Feedback, 0 Negative Global Feedback
Damping Factor: 80
Signal to Noise Ratio: 120 dB
Power Rating: 200 Watts at 8 Ohms Capable of driving at 1 Ohm load
Static Power Consumption: 250 Watts
Filter Capacitance: 220,000 µf
Transformers: Dual 600W Toroidal Transformers
Dimensions: 33 cm diameter x 46 cm tall
Weight: 46 Kg

Control Features:
- Switch for Balanced or Single-ended operation.
- Power On /Standby/Off
- Remote Power Control
- High and Low Bias Mode switch
- Low/High Gain switch

MADE IN USA
