MOON 300D DAC

Säljer min MOON DAC pga. att jag har växt ur den. Den är i gott skick och låter bra

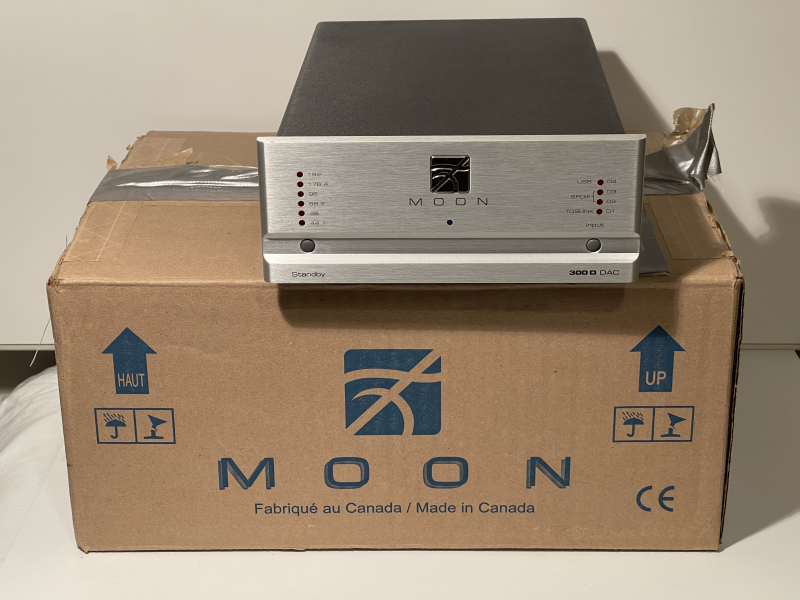

- precis som den ska. Originalförpackning medföljer.

Den mår bättre av att bli spelad än att ligga i sin kartong.

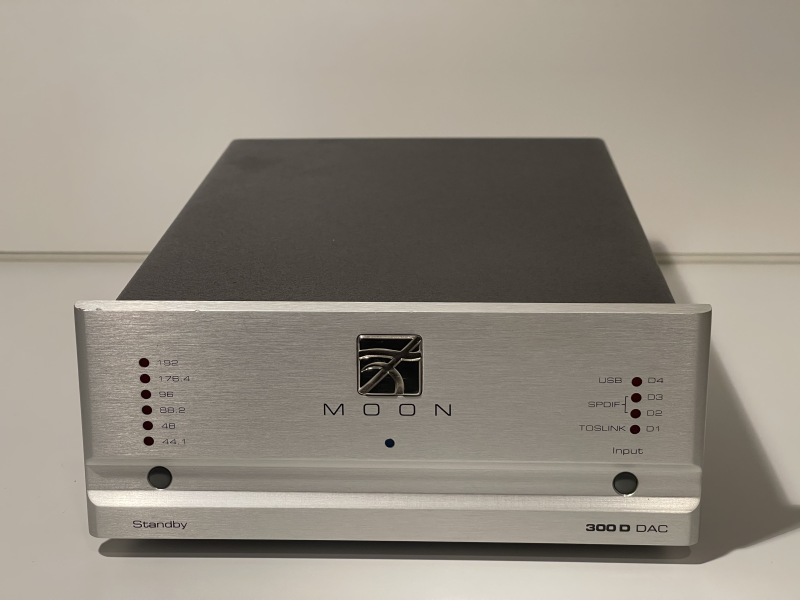

Detailed Specifications: Type: Solid State Front Panel Controls: Standby / Input Selector LED Indicators: Locked Sampling Frequency / Input

Digital Input Types: S/PDIF (RCA) x 2 USB x 1 TosLink x 1 Digital Input Impedance: S/PDIF 75 Ohms @ 0.5 Volts DAC / Digital Filter: BurrBrown PCM1793

Bit-depth range: - S/PDIF, Toslink 16 - 24 bits Bit-depth range: - USB 16 bits

Sampling Frequency Rate range: - S/PDIF, Toslink 32, 44.1, 48, 88.2, 96, 176.4 and 192kHz Sampling Frequency Rate range: - USB 32 - 48kHz

Frequency Response (audible): 20Hz - 20kHz +0/-0.2dB Frequency Response (full range): 2Hz - 72kHz +0/-3dB

THD @ 1kHz, 0dBFS (A-weighted): < 0.001 % IMD < 0.004 %

Dynamic Range: > 116dB Signal-to-noise ratio: > 115dB @ full output

Slew Rate: 50V/µs Channel Separation: > 115dB Low Level Linearity: ±1.0dB to below 120dBFS Intrinsic Jitter: < 25 picoseconds RMS

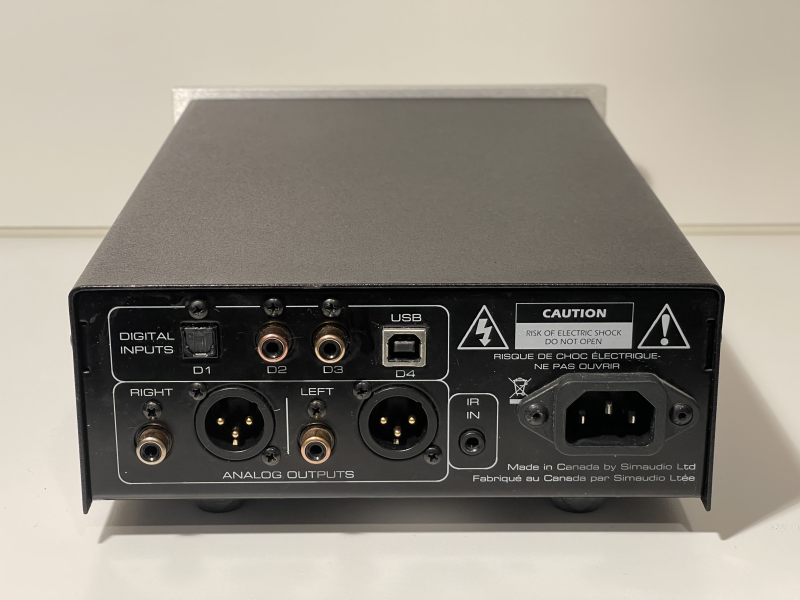

Single-ended Output: (RCA) 1 pair Balanced Output: (XLR) 1 pair Max. Analog Output: @ 0dBFS - RCA 2.0 Volts Max. Analog Output: @ 0dBFS - XLR 2.0 Volts Output Impedance: - Single-Ended 100 Ohms Output Impedance: - Balanced 100 Ohms

IR input: 1/8" mini-jack Power Consumption: 5 Watts AC Power Requirements: 120V / 60Hz 240V / 50Hz Fuse Replacement: - 120V 0.2A short slow blow Fuse Replacement: - 230V 0.1A short slow blow

Shipping weight: 7 lbs / 3 kgs Dimensions: (W x H x D) 7.5 x 3.25 x 11 in. (19 x 8 x 28 cm.)
