ASR Emitter II Exclusive Version Blue

Tysk handbyggd dyrgrip.

Friedrich Schäfer's ASR Audio Systeme.

Byggd med endast de finaste komponenterna placerade i ordentliga kretskort.

Fint begagnat skick med några bruksmärken.

Det är svårt att fotografera apparater i svart plexi.

Ger ett gott intryck på plats.

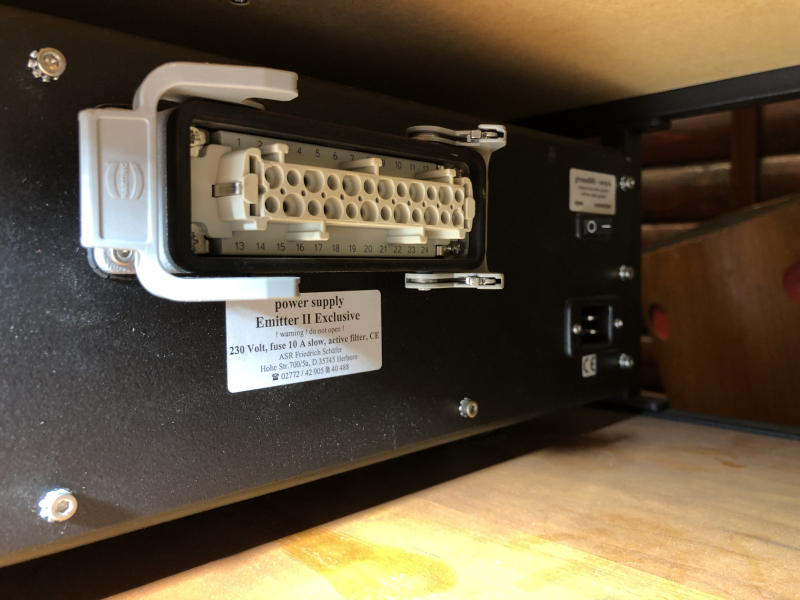

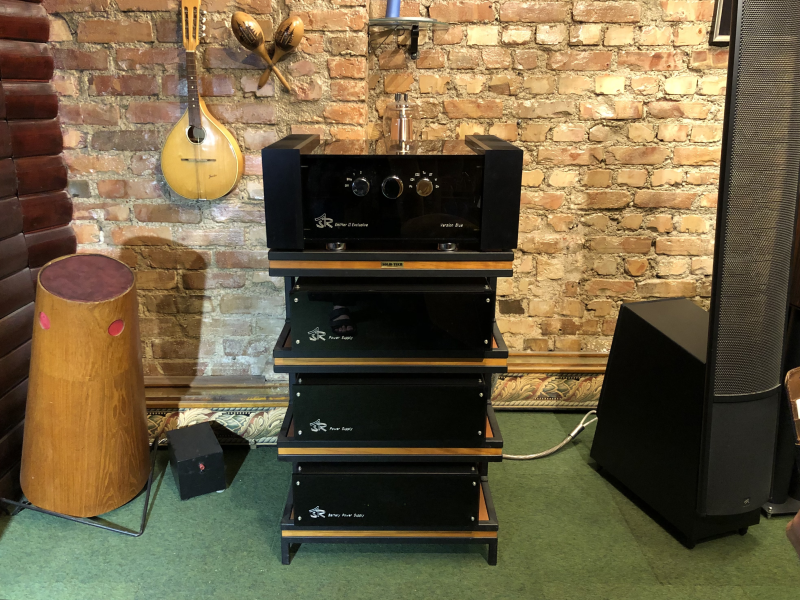

Fyrdelad apparat: 1st förstärkare med 3st nätdelar varav en för batteridrift.

Kuriosa. Första ägaren var Peak Consult, därefter nuvarande ägare.

Säljes åt kund.

Nya batterier i nätdelen.

Kommer med tysk manual, 3st 16A. nätkablar och original sten-fjärrkontroll.

Inga originalkartonger.

Nypris idag är en bra bit över 200 000:-

OBS: Rack ingår EJ.

Beskrivning:

The Emitter II was developed in order to drive the most demanding loudspeakers with ease of power. The Emitter II Exclusive has a separate power supply for each channel and an external rechargeable battery-supply that powers the amps input stage. What these features achieve is an extremely noise-free sound which is hard-pressed to match. The pace and three-dimensionality, coupled with the ease of listening make this one of the greatest amplifiers ever created. The two power supply units contain two powerful PM (Philbert-Mantelschnitt) transformers with an energy saving circuit. In total, 3 transformers generate eight different voltages. Every voltage is rectified individually and pre-buffered. These voltages are used to supply separately the input amplifier, driver and output stages, as well as the control circuit. The Emitter II is connected to the power supply units with 2 double-shielded cable, each 2 meters long.

Ingångar: RCA, 1st Direct RCA, 1st XLR. 1st Tape Out. 1st sub out. 486.440uF Kondensatorbank. Nätdel Mått (BxHxD): 460 x 160 x 420 mm, Vikt: 31kg. Huvudenhet Mått (BxHxD): 420 x 180 x 420 mm, Vikt: 19kg.

Description: Solid-state, multi-chassis, integrated amplifier with remote control. Maximum output power: 280Wpc into 8 ohms (24.5dBW), 500Wpc into 4 ohms (24dBW), 900Wpc into 2 ohms (23.5dBW), 1400Wpc into 1 ohm (22.4dBW). Frequency response: 0.2Hz–500kHz, –3dB. Distortion: 0.02%, 50mW to 1dB under maximum RMS output at 1kHz; 0.1%, 20Hz–20kHz. Input impedance: 10k ohms. Input sensitivity (for 150W into 8 ohms): level "61," 2.0V; level "76," 400mV. Voltage Gain: up to 28dB in position 1, up to 43dB in position 2, depending on volume setting. Signal/Noise Ratio: >90dB ref. 1W/8 ohms.
