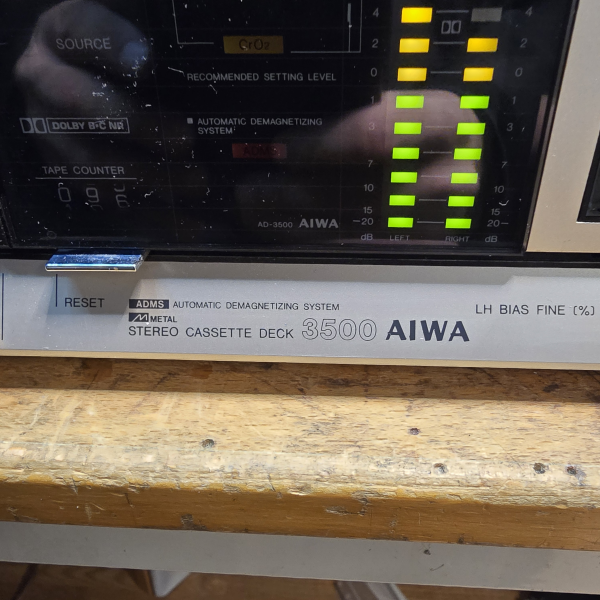

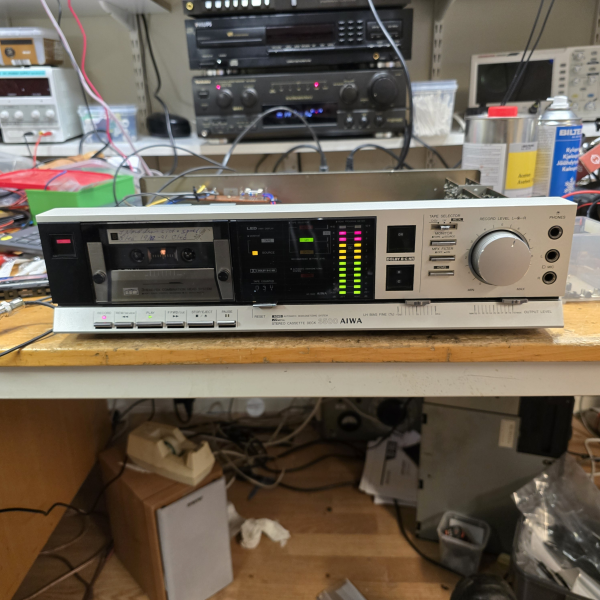

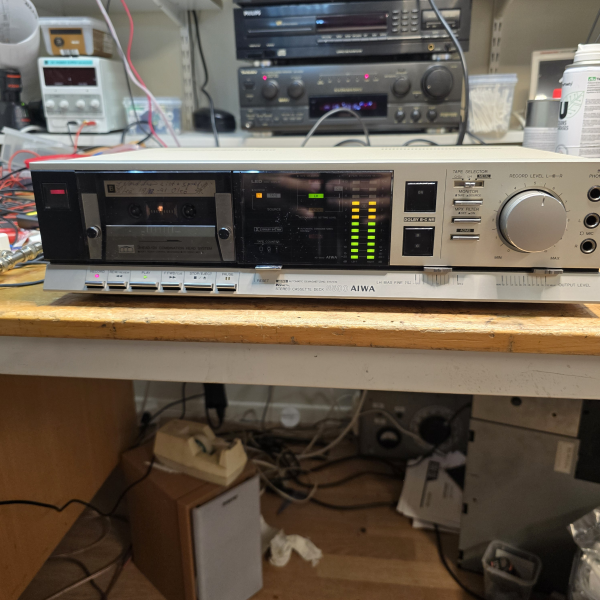

Aiwa AD 3500

Aiwa AD-3500

Description
The Aiwa AD-3500 is an exciting 3-head model offering high performance, exotic styling and a host of convenient new features, including Dolby C noise reduction, ADMS and soft touch controls.

Specifications
Type: 3-head, single compact cassette deck

Track System: 4-track, 2-channel stereo

Tape Speed: 4.8 cm/s

Heads: 1 x combination record/playback, 1 x erase

Motor: DC servo

Tape Type: type I, CrO2, Metal

Noise Reduction: B, C

Frequency Response: 20Hz to 19kHz (Metal tape)

Signal to Noise Ratio: 68dB (dolby C)

Wow and Flutter: 0.035%

Total Harmonic Distortion: 1.5%

Input: 50mV (line), 0.3mV (mic)

Output: 0.55V (line)

Semiconductors: 8 x IC, 90 x transistors, 75 x diodes, 37 x LED

Dimensions: 420 x 110 x 280mm

Weight: 4kg

Year: 1981
